CAPS
Fire Inc. offers solutions that fit a wide variety of Novec
1230 fluid pump applications; from small local to larger inertion
delivery systems. We provide pre-engineered pump systems that
can be installed easily by qualified contractors using simple
site connections or complete custom engineered systems for specific
OEM or user applications. Our systems cover a wide range of
agent flow rates (lbs/sec) and can be powered by a variety of
sources.
Utilizing
a pump allows the fire protection system designer to use clean
agents in new methods using either a total flooding or local
spray application. This unique concept in applying clean agents
for fire protection is providing new solutions to age old
problems. Whether using an independent pump system or combining
a pump system with existing bottles our patent pending technology
provides the greatest flexibility possible in developing a
comprehensive fire protection system.
System
Sizes
- Flow
rates range from 0.7 L/min (0.2 GPM) to 378 L/min (500 GPM)
- Continuous/constant
nozzle pressures to 17 bar (250 PSI)
Pump
Power Options
- AC
- 220 Volts; Single Phase (60 Hz)
- AC
- 208/460 Volts; 3 Phase (60 Hz)
- AC
- 380/415 Volts; 3 Phase (50 Hz)
- DC
- 12, 24, 36 or 48 Volts
- Compressed
Air

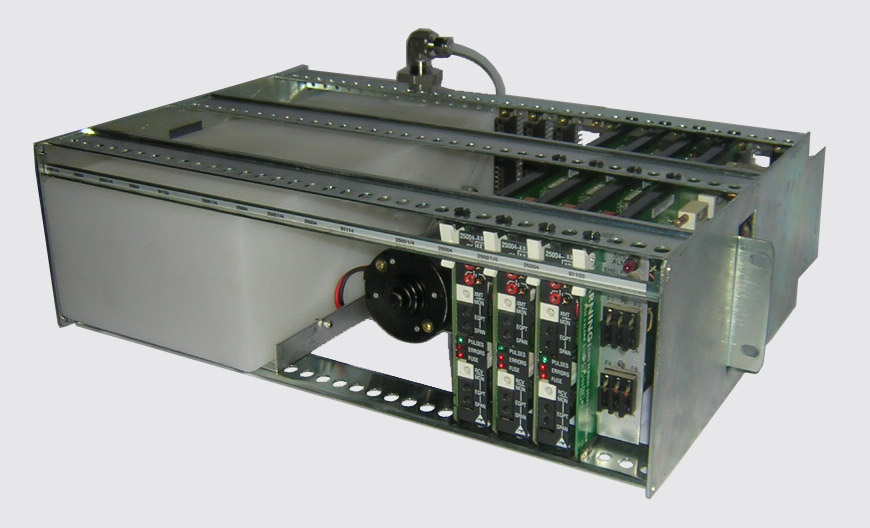

The image to the
right is a conceptual design for a pump delivery system that
mounts in a standard 19" wide by 5.25" high electronics cabinet
rack unit. Pump based delivery systems utilizing Novec 1230
fluid can provide a long duration discharge and operates on
existing backup battery power. You
can view a larger image by clicking on this link or the image.
|
