Transfer Pumps for
Filling Operations

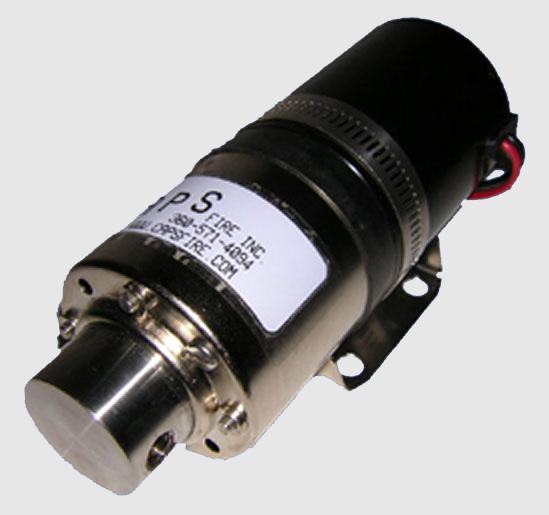

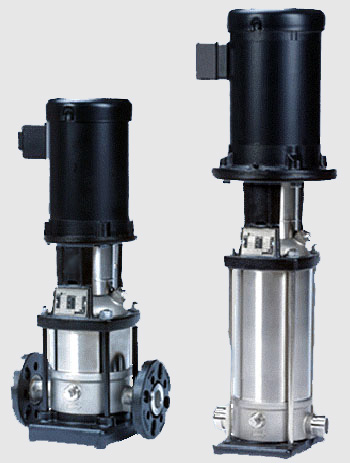

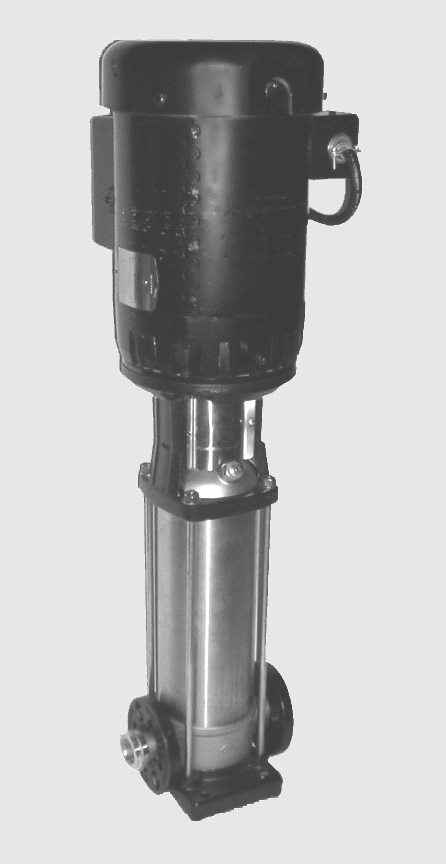

CAPS Fire Inc. offers pumps for transferring
Novec™ 1230 Fire Protection Fluid from shipping containers
to bottles or between on-site bulk storage tanks. We offer
pumps with a variety of power options, materials of construction
and flow rates that can operate with a flooded suction or
even a limited dry suction lift. These pumps are available
with electric motor drives or can be operated from bottled
compressed gas cylinders (air or nitrogen) for recharging
systems in the field.

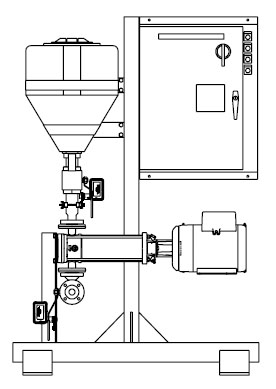

Pre-Engineered Pump Delivery Systems
Our pre-engineered delivery systems are assembled
at our Washington manufacturing site and shipped to the system
installer for component integration/installation anywhere
on the globe. Simply connect the pumping unit outlet to the
discharge piping network, connect the pump control panel to
a power source and the fire alarm system, fill with extinguishing
agent and arm. It's that simple.
These clean agent pumping systems are capable
of replacing contemporary bottled systems but provide twice
the effectiveness. Each system is designed to equal two distinct
bottled systems; providing equivalent capacity for two entirely
separate discharges and saving precious storage space that
would be taken up by redundant cylinders. This allows for
the system to be brought online immediately after the first
discharge or can be configured to provide a second discharge
in the event of re-ignition or drop in agent concentration
when using the appropriate monitors or sensors.
A Few of Our Common Available Sizes
13 lb. Capacity of 3M™ Novec™ 1230 Fire Protection
Fluid
200 lb. Capacity of 3M™ Novec™ 1230 Fire Protection
Fluid
1200 lb. Capacity of 3M™ Novec™
1230 Fire Protection Fluid
Engineered Pump Delivery
Systems
When "standard" just doesn't fit,
let us help you design a custom delivery system. We can
size a pump or delivery system to meet your specific requirements
by matching design nozzle pressures, flow rates, or even
for OEM integration into existing equipment. We specialize
in small (2-3 lb/minute) local applications but can easily
provide a solution for that larger application when a long
continuous, inerting or cycled discharge is needed.
Let our experienced staff help guide you through
the selection process so that you obtain the right pump.
We can even work within your design constraints to develop
an appropriate storage container for those unique systems
with limited storage dimensions. The following pictures
are just one example highlighting the benefit to custom
molding a storage container. This design provides enough
capacity for two independent systems while stacking the
storage resovoir above the pumps. This system can also be
configured to work as a single delivery system while providine
ample space for a second, redundant backup pump. The possibilities
for storage containers and Novec™ 1230 fluid pumping
systems are endless!!

(NOTE:
Only one pump is shown in images above for clarity)
Feel
free to submit the specifics on your application using our
online form today!
|
